Instant Price Match: Purchase from an authorized dealer of LiftMaster to ensure your warranty is valid! Every Authorized LiftMaster dealer must advertise at their minimum advertised price (MAP). You will always see the minimum advertised price on our site, however we shop our competitors daily. When you click the “instant price match” button above or call (813) 792-9726 we will give you today’s price, with shipping included.
The LiftMaster LA500XL Single Swing Gate Opener is a low-voltage system, eliminating the need to run expensive 110-volt AC power wire to your gate. Furthermore, the LA500XL Single meets the high safety standards of the UL 325 listing, making it a reliable and safe gate opening device.
Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others
Weight and length: Up to 18' in length or 1600 lbs.
Operating Temperature: -4°F (-20°C) to 140°F (60°C)
Max degree of opening: 90° opening in 15-17 seconds
Solar Compatible: Yes
Power: Full-time AC-run operation, 120V Single Phase with battery backup
Power Wire Specification:10, 12, or 14 Gauge Wire (sold separately). Wire depends on distance between transformer and control board.
Warranty: Two year manufacturer warranty
Welding is REQUIRED for Installation
LiftMaster recommends professional installation and provides direct support to its recognized dealer network. When customers purchase LiftMaster products through Gate Crafters, they receive seven-day installation, technical, and warranty support from us. We also assist with advanced support and warranty replacement directly with LiftMaster.
Gate Crafters offers more expert assistance than anyone. If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.

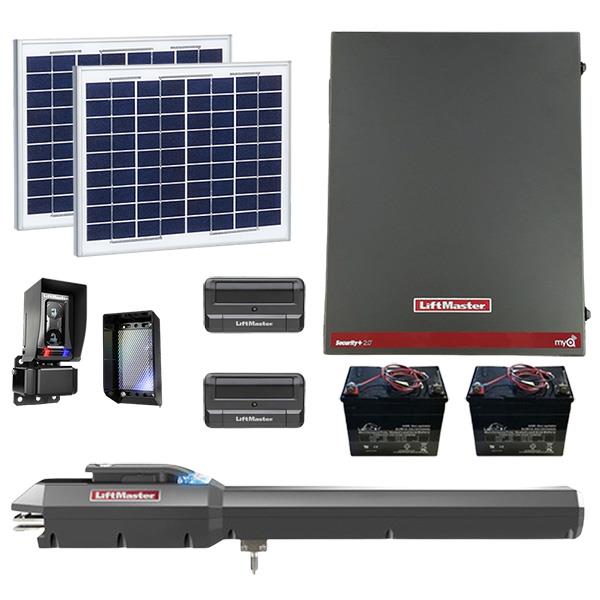

LiftMaster LA500XL Single Swing Solar Gate Opener Kit with MyQ Technology
The LiftMaster LA500XL Single Swing Gate Opener is a low-voltage system, eliminating the need to run expensive 110-volt AC power wire to your gate. Furthermore, the LA500XL Single meets the high safety standards of the UL 325 listing, making it a reliable and safe gate opening device.
Our most powerful swing gate operator offers unsurpassed performance and secure access to your property. You can enter and exit your property even when the power is out, thanks to our Battery Backup feature and ultra-efficient Power Management System, which provides up to 500 cycles or 24 days of operation. It delivers the performance you need when you need it, supported by an ultra-reliable Solar Power System. The heavy-duty cast aluminum housing DC motor is powerful enough to handle the most demanding applications. The soft start/stop operation extends the life of the operator and hardware, making it ideal for heavy-duty gate use. It is rated for gates up to 18 feet in length or 1,600 pounds.
LiftMaster has added an extra level of convenience with the integration of MyQ technology. By simply downloading the MyQ application to your smartphone and connecting the LiftMaster 828LM Internet Gateway (not included), you will be able to control your driveway gate openers and other LiftMaster automated doors and gates. The MyQ smartphone application is compatible with all of LiftMaster’s MyQ-enabled devices.
Ordering Options
The ordering options for the LiftMaster residential gate opener series involve selecting your desired frequency and the size of the control box. The standard box measures 14" x 10" x 6," whereas the larger upgraded box measures 20" x 17" x 6."
Large Control Box:Comes with the larger, upgraded control box. (Please note that the larger box is designed to store a larger battery)
If you need a dual gate opener system but are unable to run low-voltage wire underneath your driveway, LiftMaster has a solution for you. You can simply purchase two single gate opener systems, and with the built-in network communication, these two systems will work together as a dual opener system.
Gate Crafters has the resources you need. How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
LED DIAGNOSTIC DISPLAY - Simplifies installation
and troubleshooting
SOLAR READY ULTRA RELIABLE SYSTEM - Simple solar conversion delivers power when you need it most and is extremely power efficient at all other times to maximize solar performance.
WIRELESS DUAL- GATE COMMUNICATION Eliminates expensive conduit costs and unsightly
driveway scars
PROGRAMMABLE AUXILIARY RELAYS - Easily add additional features, such as warning
lights/alarms
BI-PART DELAY Monitors and adjusts speed and
position of each wing to ensure primary gate
closes last
SYNCHRONIZED CLOSE - Simultaneously closes gates
PRE-MOTION WARNING ALARM - Activates onboard
alarm three seconds prior to gate motion
ANTI-TAILGATE - Prevents unauthorized access.
Gate will pause when closing as vehicle pulls onto
interrupt loop or breaks photo beam. Once vehicle
backs up, gate will continue to close.
HOMELINK® COMPATIBLE - Version 4 and higher
SECURITY+ 2.0® ON-BOARD RADIO RECEIVER - Up to 50 remote controls (unlimited with
811LM/813LM).
COMMERCIAL-DUTY CAST ALUMINUM HOUSING WITH HEAVY-DUTY DC MOTOR - Powerful enough to perform in the most demanding applications
SOFT START/STOP AND MID-TRAVEL REVERSAL - extends operator and hardware life in high-cycle and heavy-gate applications.
KEYED MANUAL DISCONNECT - when unlocked, allows gate to be operated manually.
INHERENT REVERSING SENSOR - detects obstructions or increased loads. Reverses gate when closing or stops/reverses the gate when opening.
FIRE DEPARTMENT COMPLIANCE - allows gate to auto open upon loss of AC power or battery depletion.
MOLECULARLY BONDED COATING - on drive system never needs lubrication.
Disclaimer: The 20W Option comes with (2) 10W Solar Panels. The 40W Option comes with (2) 20W Solar Panels and the 60W Option comes with (2) 30W Solar Panels.
For over a decade, Gate Crafters has been the premier online retailer of gate openers and gate opener accessories. Thanks to our extensive technical and installation knowledge, we are authorized to sell to the DIY market. If you purchase an LA500 gate opener system from Gate Crafters and install it yourself, your warranty eligibility will be recognized by LiftMaster and supported by Gate Crafters. You can access our trained technical staff seven days a week from 9 AM to 9 PM EST. The LA500 can be installed with simple household tools and does not require any specialized equipment. The wiring required for the installation is straightforward, as it consists entirely of low-voltage wiring.
By DIY installing your gate opener system, you can save thousands of dollars over the life of your gate opener. You'll gain valuable knowledge about your gate opener installation and how the system works, making it easier for you to troubleshoot and perform routine maintenance if needed in the future.
Gate Crafters is the DIY factor. Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
Order specific customized accessory wiring instructions
360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
Free 24/7/365 Installation Support
Free 7 day/week Technical Support
Largest Number of Certified Techs in America
Free assistance to find the right gate opener for your gate
Free systems design assistance to match the right accessories to fit your needs.
Extremely competitive pricing
Free shipping on all accessories purchased with a gate opener
We stock replacement parts
Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
Gate Crafters has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.
"I bought the opener to install on my one of my costumer's gates that we built for their home. I was a little paranoid when she and her 2 year old son came out and watched the whole setup process. But, to my surprise, this was the first opener I have installed and it took no time at all to get it fully operational. The manual was very easy and it just took a few steps to set it up. It is working great now. Thanks, LiftMaster and the people at Gate Crafters. You made my life easy with the ease of ordering and install."
Eric S.
Instant Price Match: Purchase from an authorized dealer of LiftMaster to ensure your warranty is valid! Every Authorized LiftMaster dealer must advertise at their minimum advertised price (MAP). You will always see the minimum advertised price on our site, however we shop our competitors daily. When you click the “instant price match” button above or call (813) 792-9726 we will give you today’s price, with shipping included.
The LiftMaster CSW24UL 24VDC High-Traffic Commercial Swing Gate Operator is designed for heavy-traffic applications such as large gated communities, residential developments, and commercial complexes. The redesigned CSW24UL swinging gate operator is UL 325 compliant and compatible with monitored safety entrapment protection devices. It has undergone years of rigorous testing to ensure it meets the latest UL 325 standards.
Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others
Weight and length: Up to 18' in length or 1200 lbs.
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Max degree of opening: 90° in 13-15 seconds
Gate Post or Column size (pull to open): There should only be a maximum of 4" (10.2 cm) from the center of the hinge to the edge of the post or column. If the distance is greater than 4" (10.2 cm) entrapment protection for this area is required.
Push to Open: No
Solar Compatible: Yes (purchased separately)
Power: 120V/230V Single Phase
Power Wire Specification:10, 12, 14 Gauge Wire (sold separately).
Warranty: LiftMaster 7 year residential, 5 year commercial Limited Warranty
LiftMaster recommends professional installation and provides direct support to its recognized dealer network. When customers purchase LiftMaster products through Gate Crafters, they receive seven-day installation, technical, and warranty support from us. We also assist with advanced support and warranty replacement directly with LiftMaster.
Gate Crafters offers more expert assistance than anyone. If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
LiftMaster CSW24UL High-Traffic Single Swing Commercial Gate Operator Kit
The redesigned CSW24UL swing gate operator is UL325 compliant and compatible with monitored safety entrapment protection devices. Years of rigorous testing ensure it meets the latest UL 325 standards. Securely monitor your gate from anywhere using your smartphone or tablet with LiftMaster's patented myQ technology. Additionally, wireless dual-gate communication between primary and secondary arm operators eliminates the need for trenching or conduit, simplifying installation and enhancing efficiency.
The CSW24UL combines reliability and advanced technology for high-traffic environments. It features a robust battery backup that provides up to 146 cycles or 24 days of standby power during outages, ensuring seamless access. With smooth start/stop operation and mid-travel reversal, the system enhances hardware longevity, while industrial surge suppression protects against lightning strikes from up to 50 feet away. Backed by a 5 year commercial and 7 year residential warranty, it offers peace of mind for users.
Designed for commercial-grade performance, the CSW24UL is constructed from rust-resistant gold zinc-plated steel and encased in a UV-resistant polycarbonate cover for durability. It operates efficiently in extreme temperatures, opening 90° in just 13-15 seconds. Standard features include a pre-motion warning alarm, inherent reversing sensor, and bi-part delay for proper closing sequence. With monitored safety inputs and a user-friendly LED diagnostic display, the CSW24UL is a versatile and dependable solution for modern gate control needs.
Gate Crafters has the resources you need. How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
LED DIAGNOSTIC DISPLAY - Simplifies installation and troubleshooting.
SOLAR-READY ULTRA-RELIABLE SYSTEM - Simple solar conversion delivers power when you need it most and is extremely power efficient at all other times to maximize solar performance.
PROGRAMMABLE AUXILIARY RELAYS - Easily add additional features, such as warning lights/alarms.
BI-PART DELAY - Monitors and adjusts speed and position of each wing to ensure primary gate closes last.
SYNCHRONIZED CLOSE - Simultaneously closes gates.
PRE-MOTION WARNING ALARM - Activates on- board alarm three seconds prior to gate motion.
ANTI-TAILGATE - Prevents unauthorized access. Gate will pause when closing as vehicle pulls onto interrupt loop or breaks photo beam. Once vehicle backs up, gate will continue to close.
QUICK CLOSE - Closes the gate immediately after a vehicle pulls off the interrupt loop.
HOMELINK® COMPATIBLE - Version 4 and higher.
SECURITY+ 2.0® ON-BOARD RADIO RECEIVER - Up to 50 remote controls (unlimited with 811LM/813LM).
INHERENT REVERSING SENSOR - Detects obstructions and reverses gate when closing or stops/reverses gate when opening
For over a decade, Gate Crafters has been the leading online retailer of gate openers and accessories. With our extensive technical and installation expertise, we proudly serve the DIY market. We believe that every customer deserves the chance to take pride in their projects, whether they are installing or troubleshooting their gate openers. Everyone should have access to high-quality products without the need of a professional.
At Gate Crafters, we empower you to install with confidence by offering access to our trained technical staff seven days a week from 9 AM to 9 PM EST. By installing your gate opener system yourself, you can save thousands of dollars over its lifespan while gaining valuable knowledge about your installation and how the system operates. This understanding will not only make troubleshooting easier, but also enable you to perform routine maintenance with confidence in the future.
Gate Crafters is the DIY factor. Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
Order specific customized accessory wiring instructions
360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
Free 24/7/365 Installation Support
Free 7 day/week Technical Support
Largest Number of Certified Techs in America
Free assistance to find the right gate opener for your gate
Free systems design assistance to match the right accessories to fit your needs.
Extremely competitive pricing
Free shipping on all accessories purchased with a gate opener
We stock replacement parts
Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
Gate Crafters has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.
