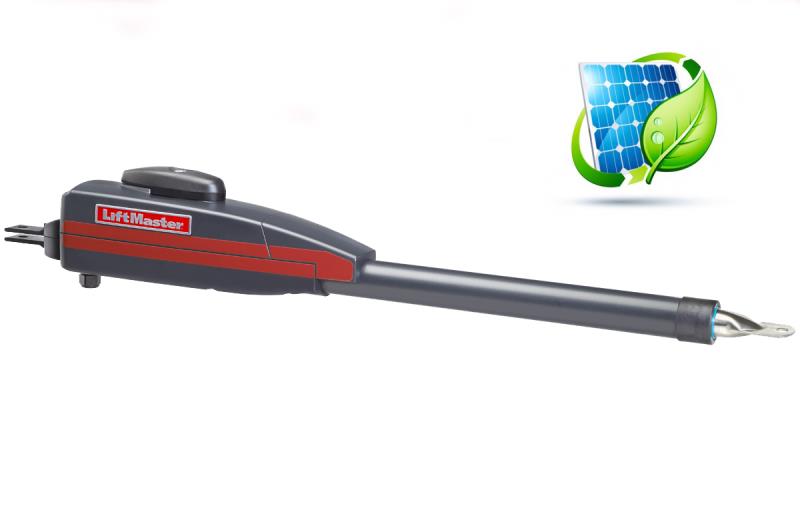

LA412DC 12VDC Residential Linear Actuator Primary Arm for LA412UL Operators The most solar optimized swing gate operator on the market, delivers unmatched performance, power and reliability when and where you need it to quickly and safely access your property. The LA412 is a solar powered residential swing gate operator with Ever Charge Power Management System – it delivers power when needed most for opening the gate and minimizes power consumption at all other times for best solar performance. Its DC motor provides soft start/soft stop operation, which promotes longer gate and operator life, as well as dependable performance. The LA412 is capable of operating gates up to 16 feet long and weighing up to 550 pounds. An on-board radio receiver is included with the LA412. Exclusive from Chamberlain, this provides a single remote control solution for gates, garage doors, and additional access points. This arm is compatible with both old and new Control Panels. **The manufacturer suggests that the product be professionally installed.** GateCrafters.com offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
- LiftMaster LA412UL Solar Swing Gate Operators
Reliable - Heavy-Duty DC Motor: performs in the most demanding applications.
- Smooth Start/Stop Operation: and mid-travel reversal extend hardware life of the gate and operator.
- Surge Suppression: provides industrial surge and lightning protection against strikes up to 50 feet away.
- Warranty: 2 years.
Smart - Solar-Powered, Energy-Efficient System: eliminates expensive trenching costs to pull power to the gate.
- myQ Technology: enables you to securely control and monitor your gate operator from anywhere.*
- Wireless Dual-Gate Communication: synchronizes gate opening/closing and eliminates expensive driveway trenching costs.
- Bi-Part Delay: monitors and adjusts speed and position of each wing to ensure primary gate closes last.
- Residential Federal Tax Credit: Qualifies for a 30% tax credit on solar gate operators and installation through 2021.
Safe and Secure - Security+ 2.0: safeguards access with an encrypted tri-band signal to virtually eliminate interference and offer extended range.
- Inherent Reversing Sensor: detects obstructions and reverses gate when closing or stops/Reverses the gate when opening.
- Fire Department Compliance: allows gate to auto-open upon loss of AC power or battery depletion.
- Manual Disconnect: when unlocked allows gate to be opened manually.
- UL ® Listed: gate operators with monitored safety entrapment protection devices.
*Cellular data or Wi-Fi ® connection required. Test equipment regularly and follow safety instructions. |
|
GateCrafters.com has the resources you need.
How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
- Usage Classification: Class I
- Main AC Supply: N/A - Solar Only
- System Operating Voltage: 12 Vdc Battery Run / Solar Charge
- Accessory Power: 12 Vdc, 500mA max for ON + SW (switched)
- Solar Power Max: 12 Vdc at 30 watts max.
- Maximum Gate Weight/Length:
- 850 lbs. (385.6 kg) / 10 ft. (3.0 m)
- 750 lbs. (340.2 kg) / 12 ft. (3.7 m)
- 650 lbs. (294.8 kg) / 14 ft. (4.3 m)
- 550 lbs. (249.5 kg) / 16 ft. (4.9 m
- 90 Degree Travel Time*: < 23 seconds
- Maximum Travel Range*: 115 degrees
- Maximum Daily Cycle Rate: 50 cycles / day
- Maximum Duty Cycle: 4 min on
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Expansion Board: Optional
- Inherent Entrapment Protection (Type A): Dual - RPM and Current Sense
- External Entrapment Protection (Type B1 and/or Type B2): 3 inputs per board - any combination of up to 3 photoelectric sensors and up to 2 edge sensors
*Travel time and range are affected by A and B mounting dimensions
Includes Primary Arm ONLY
For over a decade GateCrafters.com has been the premier online retailer of gate openers and gate opener accessories. Because of our extensive technical and installation knowledge, we are authorized to sell to the DIY market. You can access our trained technical staff 7 days a week from 9 am to 9 pm, EST. When you DIY install your gate opener system, you will save $1000s of dollars over the life of your gate opener. You will have working knowledge of your gate opener installation and how the gate opener works. This will make it easier for you to troubleshoot your system and perform routine maintenance, if needed in the future. |
GateCrafters.com is the DIY factor.
GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US. |
| Order specific customized accessory wiring instructions360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.Free 24/7/365 Installation SupportFree 7 day/week Technical SupportLargest Number of Certified Techs in AmericaFree assistance to find the right gate opener for your gateFree systems design assistance to match the right accessories to fit your needs.Extremely competitive pricingFree shipping on all accessories purchased with a gate openerWe stock replacement partsMany brands of many types of accessories, enough to handle just about any operational situation you can imagine |
GateCrafters.com has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental. Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
